The Mini Flood 12V Wall Wash delivers a subtle, low amount of light to a wide area, up close to the structure, with minimal hot-spots. This fixture features Kichler's durable Centennial Brass finish. Our 12V low voltage landscape drop-in fixtures are compatible with a wide selection of Professional and Contractor Series LED Lamps and are a great economical choice for any design application.
- Drop-in fixtures, which allow you to change out the light source, also allow you to customize color temperature, beam angle, wattage, and lumen output based on the LED bulb selection.
- This fixture uses a T5 Wedge socket lamp base, which is optimized for Kichler LED drop-in lamps.
- Cast brass construction is built to withstand harsh weather conditions.
- For surface mounting, purchase the 15601 mounting bracket; 15493CBR is also an alternate mounting bracket.

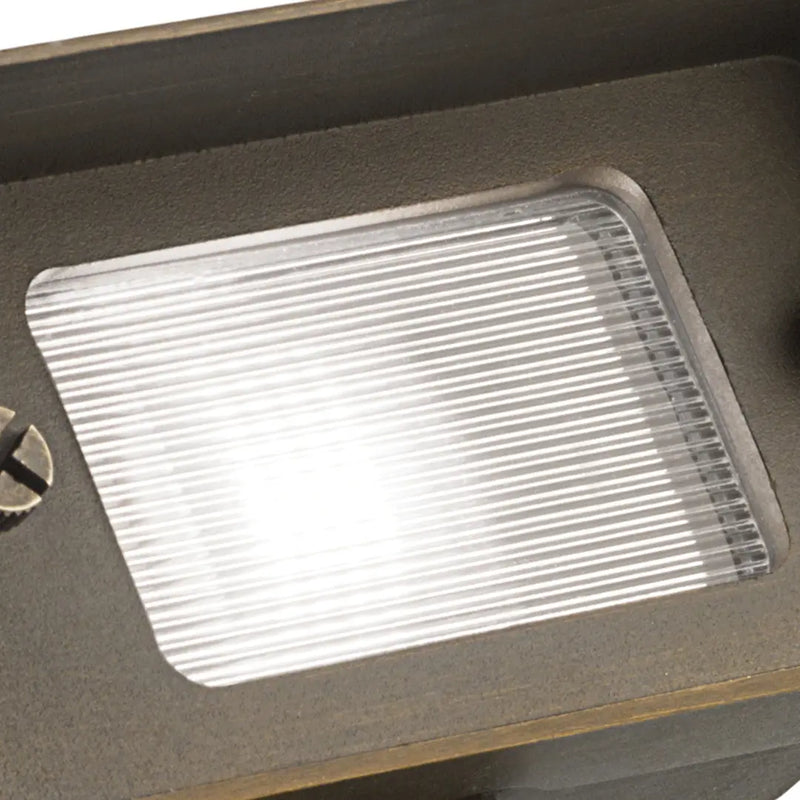

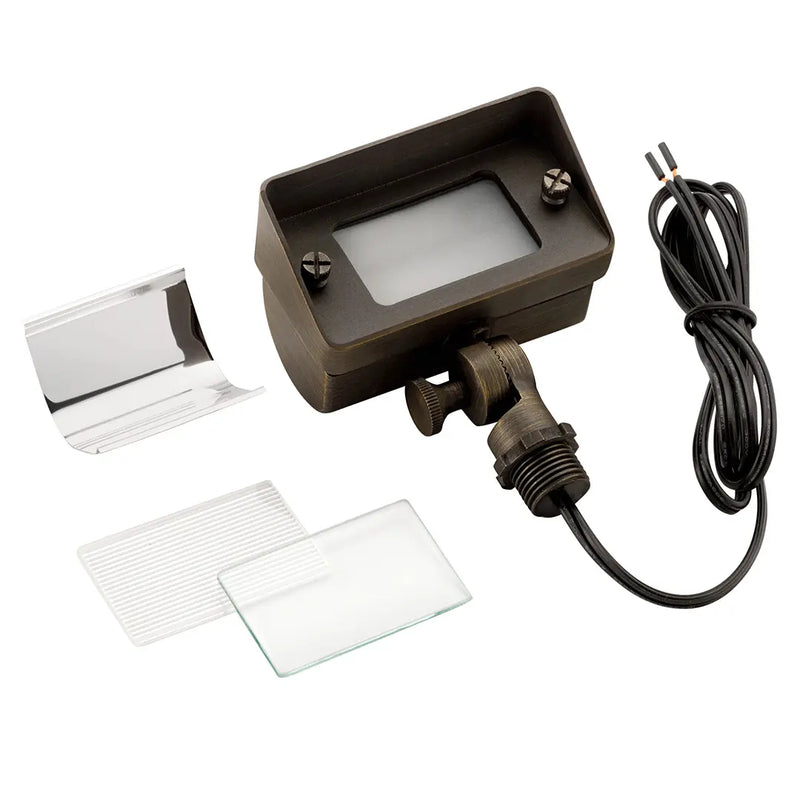

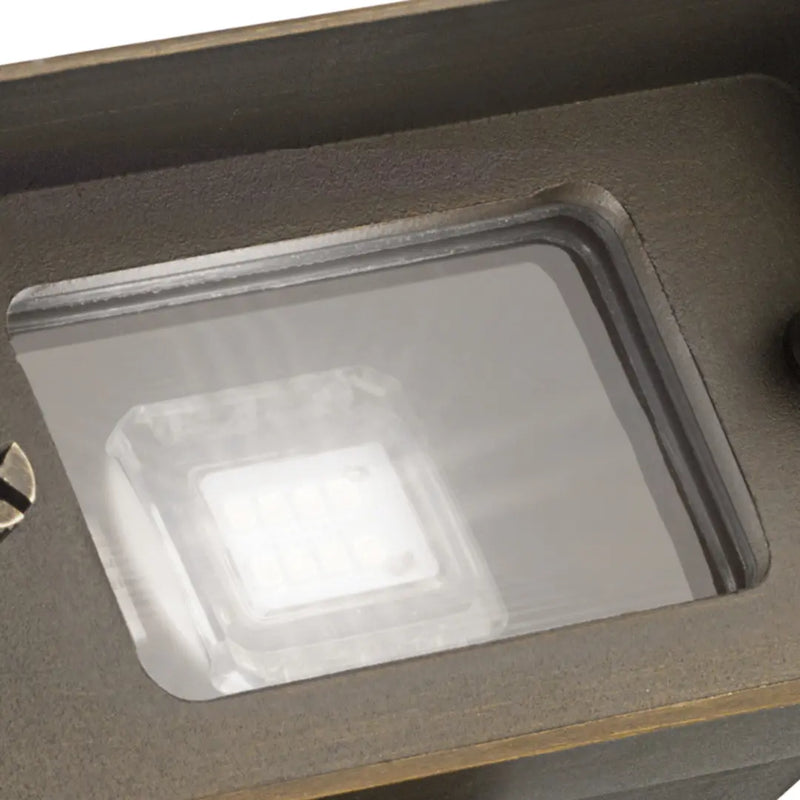

What's in the Box? 8-inch slotted in-ground stake; two gel-filled wire nuts and locknut; clear, frosted, and linear tempered glass lenses; and 48 inches of usable #18-2, SPT-1W leads.
Bulb Not Included
Technical Specifications
Mounting/Installation
- Location Rating: Wet
Dimensions
- Height: 4.25"
Length: 4.00"
Width: 2.50"
Light Source
- Lamp Included: Not Included
Lamp Type: T5
Light Source: Incandescent
Max or Nominal Watt: 18.00
# of Bulbs/LED Modules: 1
Product/Ordering Information
- SKU: 15476CBR
Finish: Centennial Brass
UPC: 783927466349
Electrical
- Operating Voltage Range: 12 VAC Voltage 12 V
Housing
- Primary Material: BRASS
Certifications/Qualifications
- Prop65: Yes
Documents
15476 Data Sheet.pdf Download PDF View PDF
IS-15476.PDF Download PDF View PDF
Spec Sheet 15476CBR Download PDF View PDF
Warranty
Landscape Lighting Warranty View Warranty
Download Landscape Lighting Warranty in English, French, and Spanish Download PDF
